Pro 4000R

SKU: 460231

Boosts 4G LTE up to 100,000 sq. ft.

  • Signal Coverage  Boosts cell phone signal inside a building or large area
  • Maximum Gain  Up to 70 dB Gain
  • Has Expansion Kits  Expansion kits available

Product Description
Pro 4000R

 Enterprise Cellular Connectivity with New WilsonPro 4000R


The WilsonPro 4000R is the first rack mounted, multi-amplifier cell booster to incorporate four separate signal amplifiers feeding multiple indoor antennas.

Designed to provide enhanced in-building cellular coverage for al...


 Enterprise Cellular Connectivity with New WilsonPro 4000R


The WilsonPro 4000R is the first rack mounted, multi-amplifier cell booster to incorporate four separate signal amplifiers feeding multiple indoor antennas.

Designed to provide enhanced in-building cellular coverage for all commercial spaces, including hospitals, hotels, warehouses and offices, the WilsonPro 4000R amplifies weak cell signals to provide reliable voice and data coverage–including 4G – to inside spaces where signals may not penetrate.

Like all WilsonPro cellular signal boosters, the WilsonPro 4000R features cell site protections that auto-detect and prevent any cell tower interference.

WilsonPro 4000R Features
The 4000R literally delivers the power of four boosters in a single rack mount unit, and provides cell coverage for up to 100,000 square feet of indoor space, or even more depending on the strength of the incoming signal from the tower.

Easy rack-mounted installation
The 4000R is intended to fit into an existing server rack. This design allows for a neat and clean installation while leaving the unit easily accessible.

Onboard Software for Better Control
Each indoor antenna path is independently and automatically controlled with onboard software, ensuring great connectivity throughout large spaces and multi-story buildings. Since all ports are independently controlled, each can adjust its gain level up or down as required by the conditions of the immediate signal environment without disrupting coverage from any other zone.

Extended Dynamic Range for Continuous Connectivity
Gives the 4000R the greatest tolerance of any competing booster for a strong incoming signal from the tower. XDR allows the booster to never shutdown due to too strong of a signal. No matter how strong, the booster will never overpower and shutdown.

Color LCD for Easier Access
Unlike other boosters, the WilsonPro 4000R has a color LCD screen with four-way navigation, allowing integrators to have easy and effective control of the product.

Read More…

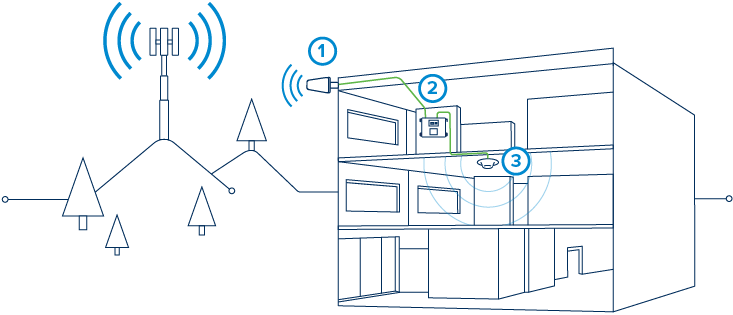

How it Works

  1. Bidirectional amplifiers (boosters) detect and collect very faint cell signals—much fainter than your phone can detect.
  2. The boosters amplify faint signals to a useable level.
  3. The amplifiers broadcast the boosted signal inside a commercial building, allowing them to be picked up by your phone or other cellular device.

Case Study


A NYC Luxury Department Store Achieves 100% Cell Signal Coverage on a Tight Deadline with WilsonPro Boosters

Learn How

Key Features

  • Easy rack-mounted installation
  • Color LCD Screen
  • Highest Downlink and Uplink Power
  • Extended Dynamic Range (XDR)
  • Multi-Amplifier Booster
  • Boosters sold in kits with antennas
  • Expansion kits available for large scale installations
  • Self-optimizing design minimizes installation time
  • Incorporates four indoor antenna ports
  • Compatible with all North American cellular networks
  • Three year warranty

 Ideal for

Large Businesses

Large Businesses
> 30,000 sq. ft.

Pro 4000R Specs

Model Number460231
Frequencies
Band 12700 MHz
Band 13700 MHz
Band 5850 MHz
Band 41700/2100 MHz
Band 25/21900 MHz
Impedance50 Ohms
Max Gain70 dB
Power110 - 240 V AC, 50 - 60 Hz, 30 W
ConnectorsN-Female
Dimensions12.5 x 19 x 1.75 in
Weight5.45
