Pro 1000C with WilsonPro Cloud service integration

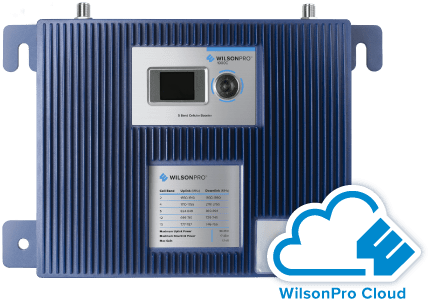

The WilsonPro Pro 1000C passive distributed antenna system is the industry's first cloud-managed cellular amplifier. The Pro 1000C is a wall mounted amplifier designed to provide enhanced in-building cellular coverage for all commercial spaces, including large homes, hospitals, h...
The WilsonPro Pro 1000C passive distributed antenna system is the industry's first cloud-managed cellular amplifier. The Pro 1000C is a wall mounted amplifier designed to provide enhanced in-building cellular coverage for all commercial spaces, including large homes, hospitals, hotels, warehouses and offices.
The Pro 1000C features the integrated WilsonPro Cloud service, which allows an installer to manage and monitor cellular amps from a phone, tablet, laptop, or any device that runs a Web browser.
Integrators can get customizable email and text notifications to alert them to any status change of installed amplifiers, including notification if a system ever goes offline.
Download Spec Sheet
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
How it Works
- Bidirectional amplifiers (boosters) detect and collect very faint cell signals—much fainter than your phone can detect.
- The boosters amplify faint signals to a useable level.
- The amplifiers broadcast the boosted signal inside a commercial building, allowing them to be picked up by your phone or other cellular device.
- Covers up to 35,000 sq ft with enhanced 4G LTE & 3G signal
- +15 dBm maximum downlink power
- XDR technology: never shuts down, even with very strong outside cellular signals
- Full color display, indicating gain and power levels of each band, for easy antenna setup
- Compatible with all U.S. cellular networks
- Integrated power supply
- New! Pro 1000C connects to WilsonPro Cloud via an LTE connection through the outside donor antenna, or through a traditional RJ-45 “hardwired” Ethernet connection.
WilsonPro Cloud service
- Remotely reset an amp or turn specific frequency bands on & off
- Generate reports & view performance histories on your phone
- Organize monitored amps by account and location
- Remote donor antenna tuning tool
- Annual WilsonPro Cloud subscription includes wireless LTE connection; no additional internet connection required
- Provides end users with high reliability and minimal downtime
> 30,000 sq. ft.
Pro 1000C Specs
|Max Gain||70 dB|
|Power||110 - 240 V AC, 50 - 60 Hz, 30 W|
|Dimensions||3.75 x 11.5 x 18 in|
100 ft. Wilson-400 Ultra Low-Loss Cable (N-Male to N-Male)
2 ft. Wilson 400 Ultra Low-Loss Cable (N-Male to N-Male)
4G Dome Antenna (50Ω)
50Ω Wide Band Directional Antenna
75 ft. Wilson-400 Ultra Low-Loss Cable (N-Male to N-Male)
Lightning Surge Protector With (50Ω) N-Female Connectors
