Network 257

SKU: 460069

  • Cloud-connected for remote management

  • Up to 1GHz bandwidth within n257

Check Mark Icon

3 Year Warranty

from Purchase

Design Icon

Tailored Solutions

Custom System Design

Location Icon

Assembled & Shipped

from a U.S. Facility


Product Description

Network 257

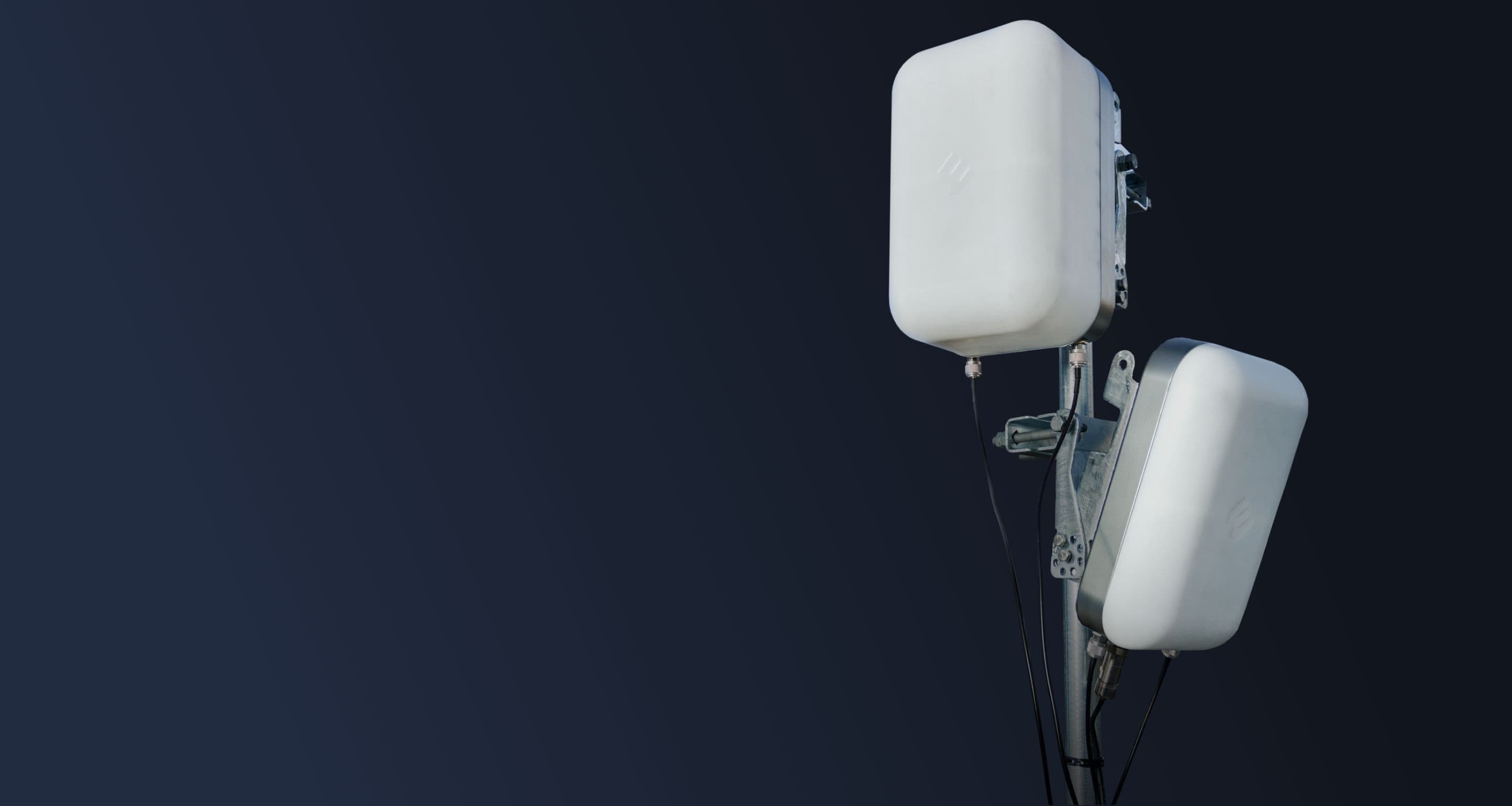

The Wilson Network 257 is the ideal repeater solution extending 5G mmWave outside cellular coverage on any mobile network.


The Network 257 can receive 5G source signals from up to 10km from the originating gNB. The NLOS service delivered from the system supports up to 1GHz of instantaneous bandwidth.


The unique hardware can be configured to support a variety of donor or service beamwidths, ranging from +/- 8° to +/- 45°, depending upon the application. This flexibility allows the dual-polarized donor and service units to be easily aimed for maximum service improvement.


An internal PCI Express Mini Card module enables LTE connectivity. The connectivity module can be easily swapped as needed, for regional/carrier support.


Finally, the entire system is designed to withstand rugged environments and extreme temperatures, from -40°C/+65°C with an IP67 rating.


Beyond its impressive technical capabilities, the Network 257 is easy to install and use. As a layer zero repeater, minimal setup is required. Network administrators can remotely monitor the system’s telemetry data in real-time or receive automated alerts. Remotely accessible data includes GPS location, internal system temperature, RF amplifier status, sensor values, automatic gain control, and manual attenuation.


Made for 5G – WilsonPro’s customizable cellular signal repeater solutions support the latest in 5G technology.

Warning Symbol

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

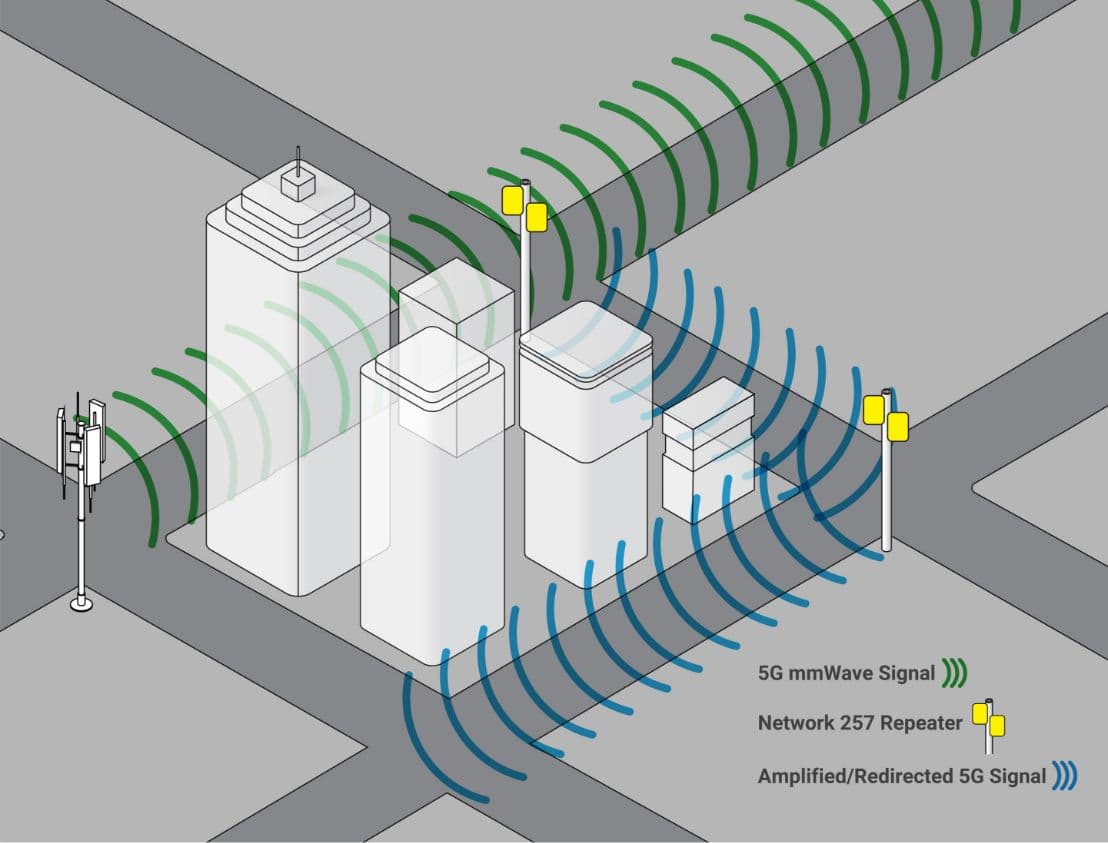

How it Works

Network 257
1

The powerful antenna receives cellular signal and delivers it to the booster.

2

The booster amplifies the signal and serves as a relay between the cellular modem and the cell tower.

3

The cellular modem performs more efficiently as it feeds data to the booster and stays connected to the network.

Key Features

  • mmWave layer zero repeater

  • High-power network extension and non-line-of-sight (NLOS) coverage

  • NMS support with internal LTE multi-band mini card

  • Cloud-connected for remote management

  • Available in a range of colors
