Filters

WilsonPro channelized filters are a powerful tool to fine tune signal booster systems for optimum performance. System installers employ a filter to attenuate incoming nonessential cell signals carried on a specific channel – Channel A, for example. This allows essential signals on the other channel – Channel B – to be amplified at full strength.


How it works

WilsonPro signal booster systems amplify cell signals across full frequency bands. However in some cases amplifying all signals on a band can cause signal overload, a condition in which a specific carrier’s signal is too strong.


In accordance with FCC regulations, an overload condition causes the booster system to automatically reduce power or perhaps shut down completely. Use of a channel filter can correct this overload condition, allowing the system to continue to amplify signals at full strength.

Product

Band 5 Channel B Filter (F Connector)

SKU: 860002

Designed to provide maximum attenuation for Channel B, Band 5, and allow other channels to pass through with minimal attenuation. Channel B includes: Downlink: 880-894 MHz/ Uplink: 840-849 MHz.

Product

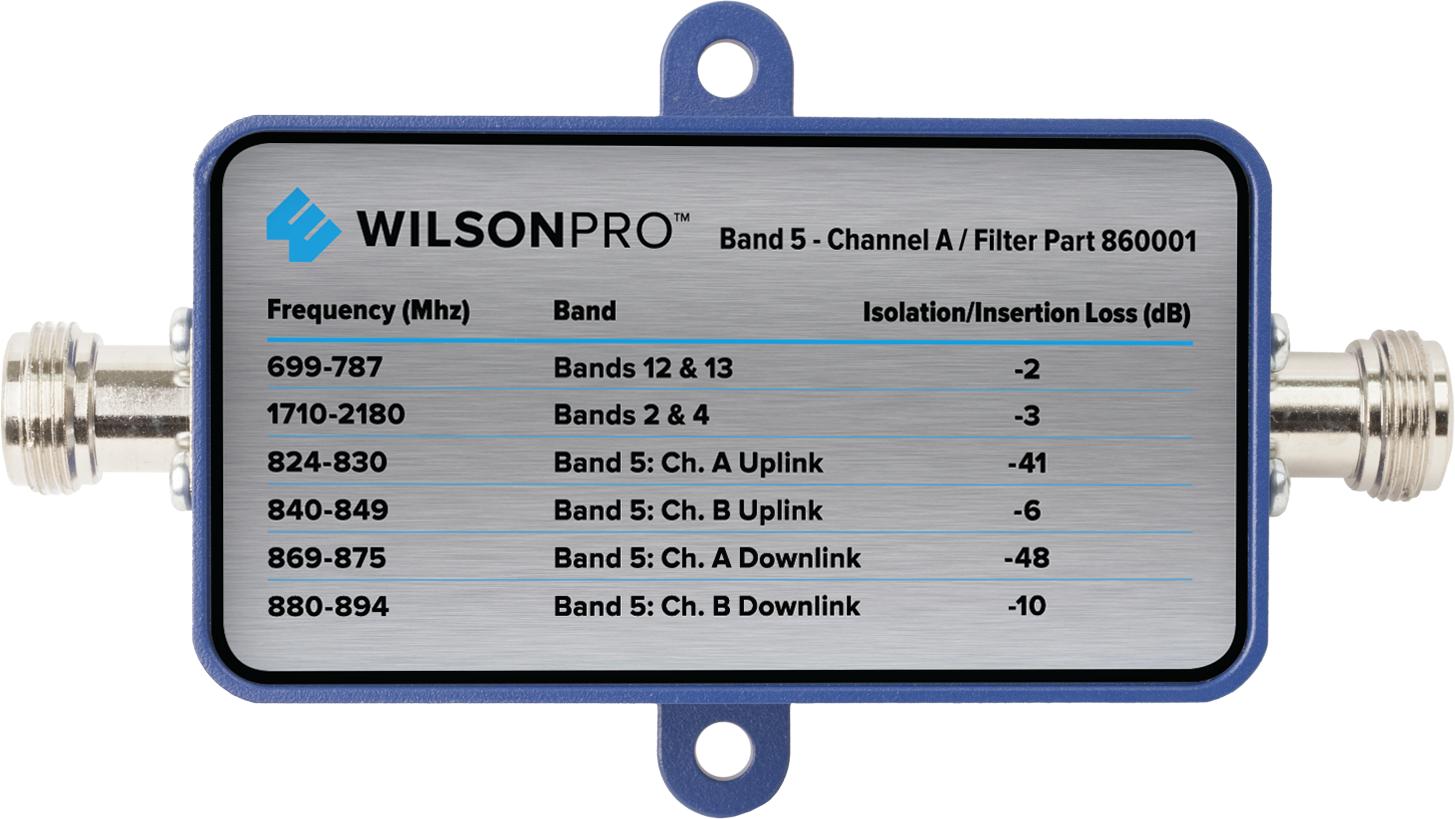

Band 5 Channel A Filter (F Connector)

SKU: 860001

Designed to provide maximum attenuation for Channel A, Band 5, and allow other channels to pass through with minimal attenuation. Channel A includes: Downlink: 869-875 MHz/ Uplink: 824-830 MHz.

Product

Band 5 Channel A Filter (N Connector)

SKU: 860003

Designed to provide maximum attenuation for Channel A, Band 5, and allow other channels to pass through with minimal attenuation. Channel A includes: Downlink: 869-875 MHz/ Uplink: 824-830 MHz.

Product

Band 5 Channel B Filter (N Connector)

SKU: 860004

Designed to provide maximum attenuation for Channel B, Band 5, and allow other channels to pass through with minimal attenuation. Channel B includes: Downlink: 880-894 MHz/ Uplink: 840-849 MHz.
