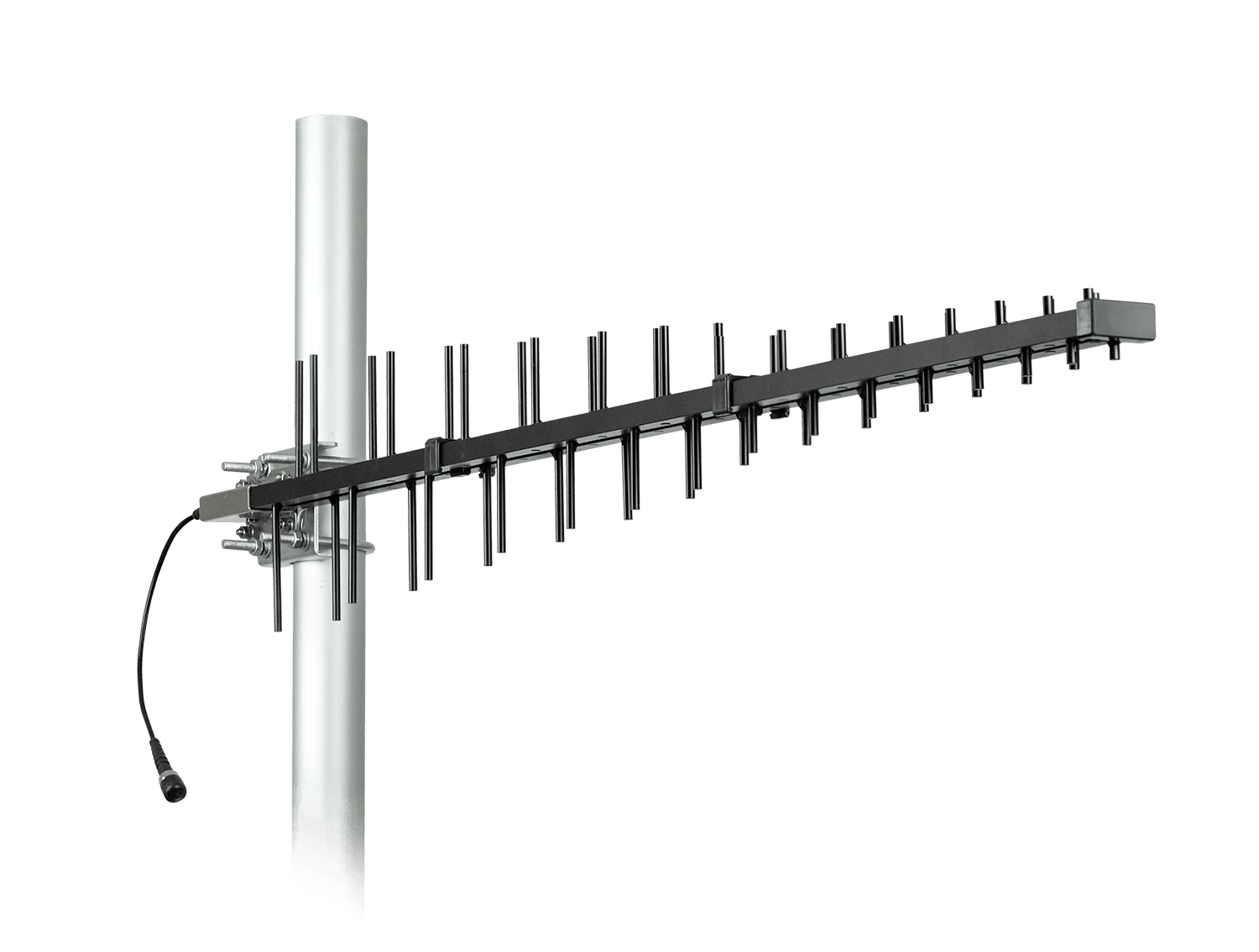

High Gain LPDA Antenna


Versatile, all-weather directional antenna


The High-Gain LPDA Antenna is made exclusively for commercial-grade WilsonPro amplifiers; regarded for its rugged, all-weather construction, high performance, and tilt-swivel bracket.


Versatile and powerful, it works on all worldwide cellular bands for voice and data; including LTE, CDMA, GSM, UMTS, and AWS. Designed to fit 1.5”-2” pipe/mast on a building’s exterior, the High-Gain LPDA Antenna is easily adjusted to point in the direction of nearby cell towers.


The High-Gain LPDA Antenna has a N-Female connector, comes with mounting hardware and works with WilsonPro amplifiers. It features a 2-year manufacturer’s warranty.



How it works


1.  Outside antenna pulls in cell signal from the closest tower.


2.  Booster amplifies the signal received by outside antenna.


3.  Inside antenna distributes this new signal for indoor use.

Warning Symbol

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Key Features

  • 44” directional waterproof antenna for all-weather use

  • Optimizes signal by pointing directly at nearby cell towers

  • Uses as tilt-swivel bracket for easy yet precise adjustment

  • Works on LTE, CDMA, GSM, UMTS, and AWS cell bands

  • Designed for building exterior installation; direct at cell tower for best signal

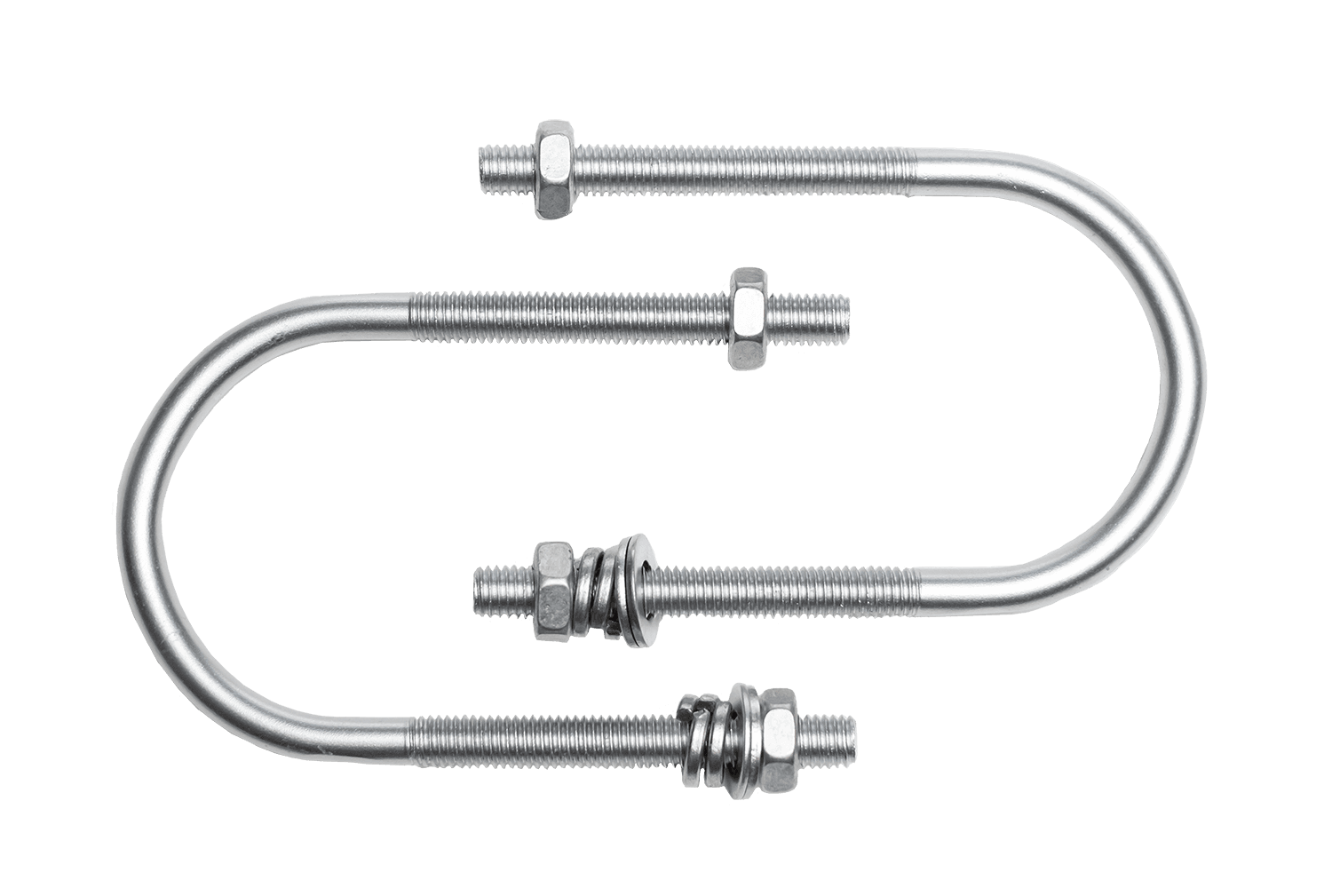

  • Simple install kit with tilt/swivel bracket for 1.5” to 2” diameter pipe/mas

  • High gain antenna for WilsonPro cellular repeater/boosters

Specs

Model311228
Antenna TypeDirectional
Frequency Band (MHz) 698-806•806-960•1710-1880•1900-2200•2200-2700
Peak Gain (dBi) 12.0 • 12.0 • 12.9 • 13.1 • 11.2
Impedance50 Ohm
Power50 watts
ConnectorsFemale
Weight3.5 lbs./1.5 Kg.
Radiator MaterialAluminum
Pole Mount (in / cm) 1.5-2.0 / 3.8-5.0
Length (in / cm)44.0 / 111.7
PolarizationLinear
