Pro Signal 3G

SKU: 460109

Boosts 3G - Direct Connect Amplifier up to m2m sq. ft.

  • Maximum Gain  Up to 15 dB Gain
  • Maximum Gain  Improves Transmission Speeds
  • Has Expansion Kits  Expansion kits available

Product Description

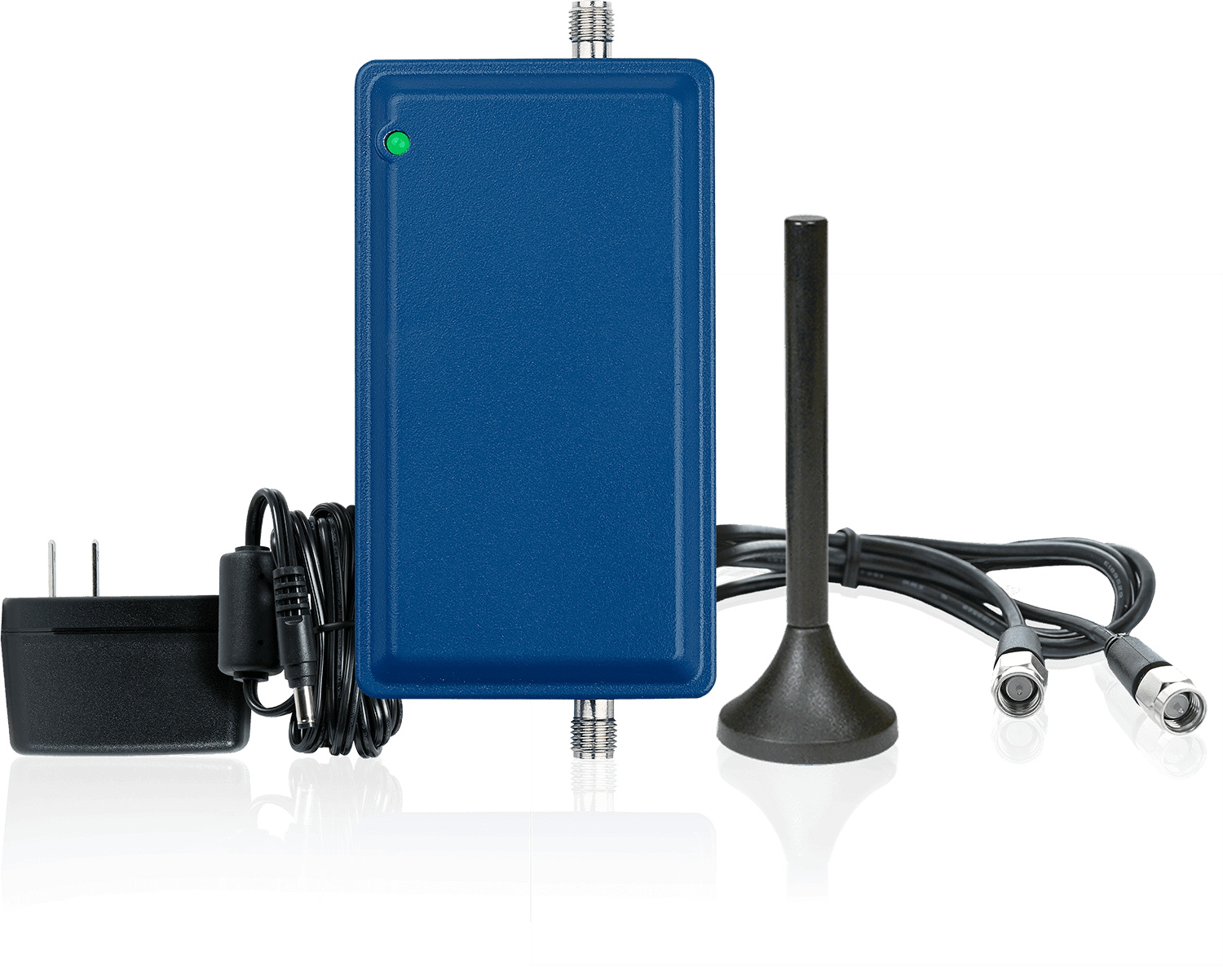

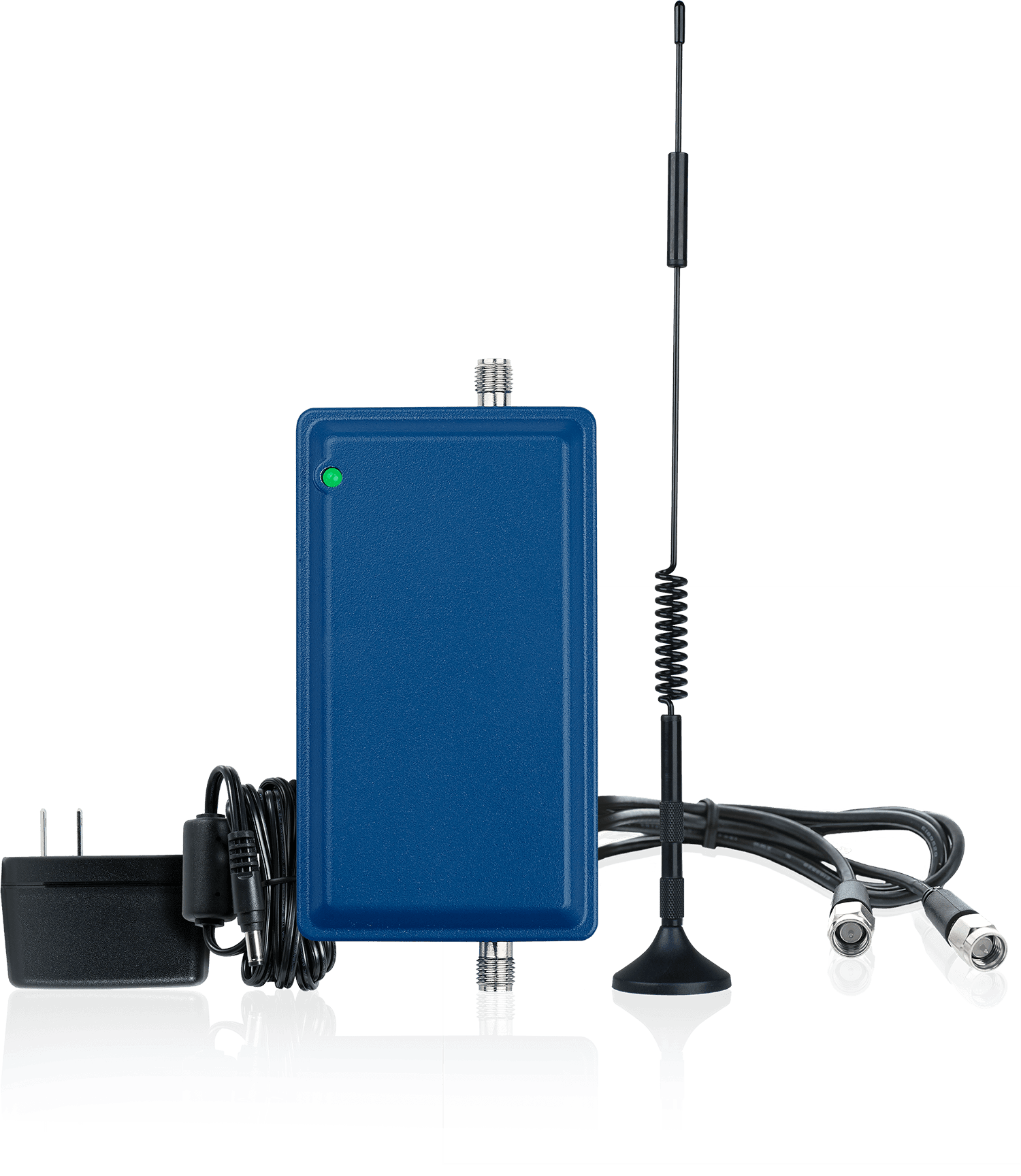

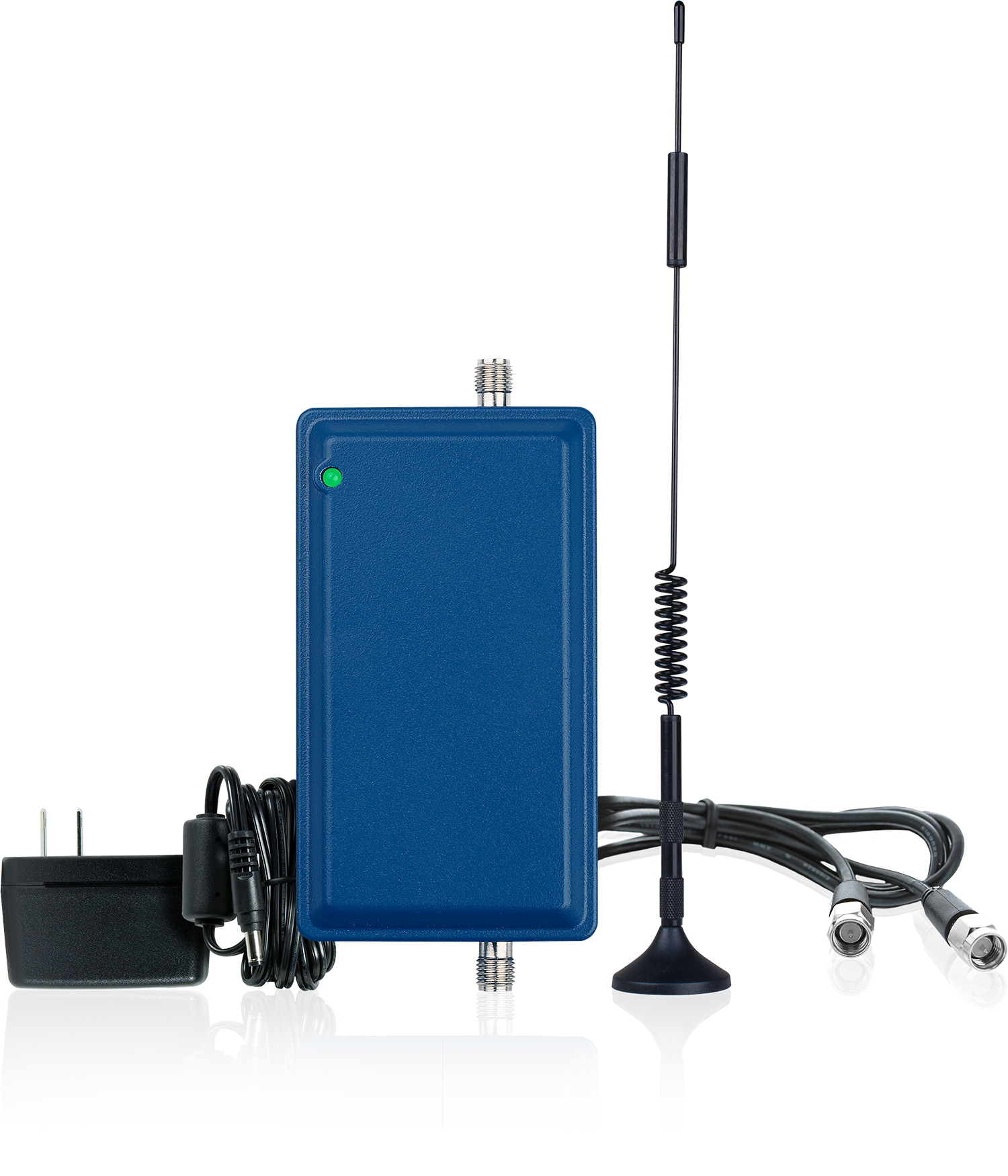

Pro Signal 3G

All Bands, Multi-Carrier Signal Booster

Developed specifically for M2M/IoT installations, the WilsonPro Signal 3G™ is based on the same field-tested, market-proven technology that powers all Wilson’s cell signal boosters. The Signal 3G is ready to integrate with cellular modems t...


All Bands, Multi-Carrier Signal Booster

Developed specifically for M2M/IoT installations, the WilsonPro Signal 3G™ is based on the same field-tested, market-proven technology that powers all Wilson’s cell signal boosters. The Signal 3G is ready to integrate with cellular modems to provide reliable signal that ensures successful data transfer. This booster kit works with all U.S. and Canada wireless service provider networks. The Signal 3G’s compact form factor makes it an ideal component for M2M/IoT installations in weak signal environments. The Signal 3G is FCC certified to the latest technical standards for cell signal boosters. Availability of the Signal 3G allows OEMs to source a compact, powerful and highly compatible signal booster that is ready to deploy. Integrators can more easily custom design M2M/IoT communication systems that fit tightly constrained spaces.

A significant percentage of M2M/IoT devices will continue for the foreseeable future to rely on current wireless networks. In locations where cellular signals are weak due to distance from the cell site, terrain features, or building materials like concrete and steel, the Signal 3G provides a strong, reliable signal.

Read More…

 Download Spec Sheet

How it Works

  1. The powerful antenna reaches out to access a 3G, 4G, and LTE data signal, and delivers it to the booster.
  2. The booster amplifies the signal and serves as a relay between the cellular modem and the cell tower.
  3. The cellular modem performs more efficiently as it feeds data to the booster and stays connected to the network.

Case Study


A NYC Luxury Department Store Achieves 100% Cell Signal Coverage on a Tight Deadline with WilsonPro Boosters

Learn How

Key Features

  • Direct connect amplifier - connects directly to data modem
  • Improves transmissions speeds while reducing resending of data
  • Configurable to fit virtually any M2M (Machine to Machine) installation
  • Boosts 3G and 2G for all North American cellular networks
  • Bi-directional amplified signals to and from the cell tower
  • Auto-power control ensures maximum output
  • Self-optimizing design minimizes installation time
  • Three year warranty
  • FCC and industry Canada certified

 Ideal for

IOT/M2M Applications

IOT/M2M
Applications

Pro Signal 3G Specs

Model Number460109
Frequencies
Band 5850 MHz
Band 25/2 1900 MHz
Impedance50 Ohm
Max Gain15 dB
Power5V/2A
ConnectorsSMA Female
Dimensions7.75 x 4.75 x 3.5 in
Weight0.94
