Pro Signal 4G

SKU: 460119

Boosts 4G - Direct Connect Amplifier

  • Maximum Gain  Up to 15 dB Gain
  • Maximum Gain  Improves Transmission Speeds
  • Has Expansion Kits  Expansion kits available

Product Description

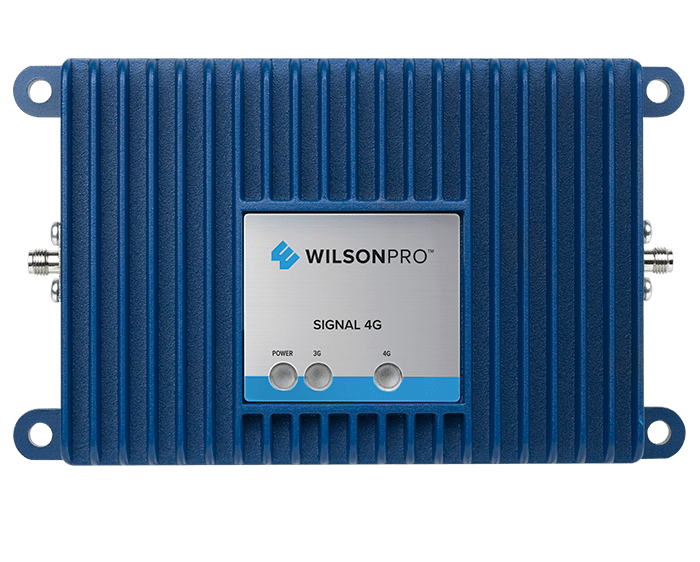

Pro Signal 4G

All Bands, Multi-Carrier Signal Booster
Developed specially for M2M installations, the WilsonPro Signal 4GTM is based on the same field-tested, market-proven technology powering weBoost consumer cellular signal boosters. The Signal 4G is ready to integrate with cellular modems, p...
All Bands, Multi-Carrier Signal Booster
Developed specially for M2M installations, the WilsonPro Signal 4GTM is based on the same field-tested, market-proven technology powering weBoost consumer cellular signal boosters. The Signal 4G is ready to integrate with cellular modems, providing reliable signal that ensures successful data transfer. This booster kit works with all North American wireless service provider networks. The Signal 4G's compact form factor makes it an ideal component for installations in weak signal environments. The Signal 4G kit includes the weBoost 4-inch mini magnet cellular antenna for maximum system gain to overcome weak signals. The Signal 4G is FCC and IC certified.

Availability of the Signal 4G allows OEMs to source a compact, powerful and highly compatible signal booster that is ready to deploy. Integrators can more easily custom design M2M communication systems that fit in tightly constrained spaces. In locations where cellular signals are weak due to distance from the cell site, terrain features, or building materials like concrete and steel, the Signal 4G provides a strong, reliable signal.
Read More…

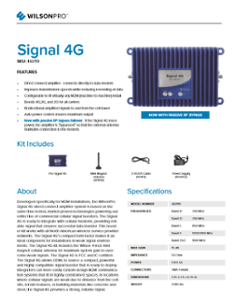

Spec Sheet

 Download Spec Sheet

How it Works

  1. The powerful antenna reaches out to access a 3G, 4G, and LTE data signal, and delivers it to the booster.
  2. The booster amplifies the signal and serves as a relay between the cellular modem and the cell tower.
  3. The cellular modem performs more efficiently as it feeds data to the booster and stays connected to the network.

Case Study


A NYC Luxury Department Store Achieves 100% Cell Signal Coverage on a Tight Deadline with WilsonPro Boosters

Learn How

Key Features

  • Direct connect amplifier - connects directly to data modem
  • Improves transmissions speeds while reducing resending of data
  • Configurable to fit virtually any M2M (Machine to Machine) installation
  • Boosts 4G, 3G, and 2G for all North American cellular networks
  • Bi-directional amplified signals to and from the cell tower
  • Auto-power control ensures maximum output
  • Passive RF bypass failover. If the Signal 4G loses power, the amplifier is "bypassed" so that the external antenna maintains connection to the modem
  • Self-optimizing design minimizes installation time
  • Three year warranty
  • FCC and industry Canada certified

 Ideal for

IOT/M2M Applications

IOT/M2M
Applications

Pro Signal 4G Specs

Model Number460119
Frequencies
Band 12700 MHz
Band 13700 MHz
Band 5850 MHz
Band 41700/2100 MHz
Band 25/2 1900 MHz
Impedance50 Ohm
Max Gain15 dB
Power5V/4A
ConnectorsSMA Female
Dimensions1.25 x 3.5 x 6.25 in
Weight1.085
