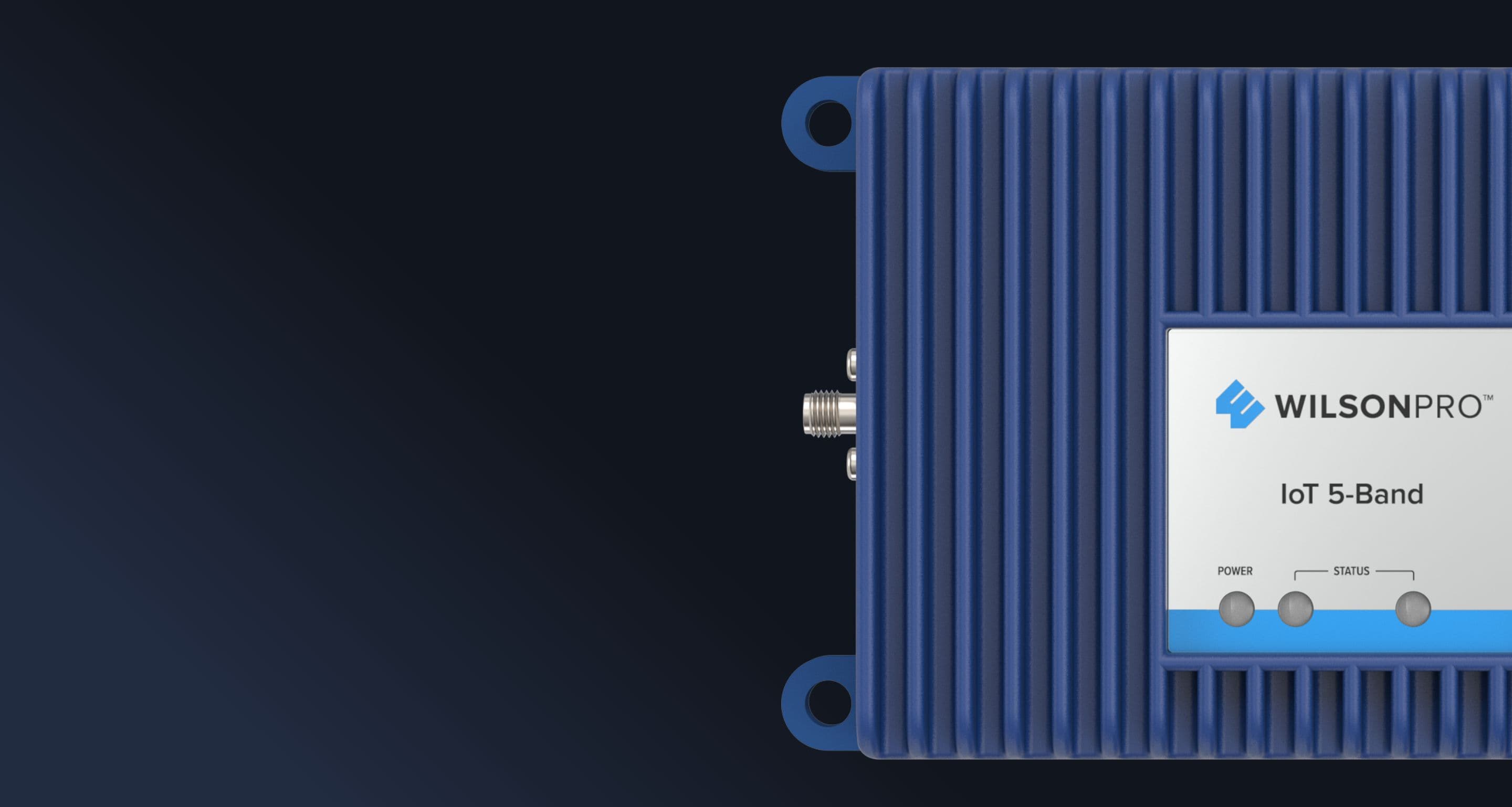

Pro IoT 5-Band

SKU: 460119

https://assets.wilsonelectronics.com/m/3402267f1b84adc5/original/460119-IoT-5-Band-Kit-Web.png
  • 25 dBm max uplink

  • Up to 15 dB gain

  • Built-in passive RF bypass failover

  • Hardwire and security kits available

Check Mark Icon

3 Year Warranty

from Purchase

Design Icon

Tailored Solutions

Custom System Design

Location Icon

Assembled & Shipped

from a U.S. Facility


Product Description

Pro IoT 5-Band


Ideal for custom-designed IoT communication systems built within tightly constrained spaces, the IoT 5-Band cell signal amplifier’s power and compact design make it a trustworthy “Direct-Connect” solution.


Compatible with all U.S. carrier networks and equipped with an impressive uplink power of up to 25 dBm and up to 15 dB max gain, the IoT 5-Band connects directly with cellular modems to ensure strong, reliable connectivity in weak signal environments. In the event of a power failure, the passive RF bypass failover feature allows the cellular modem to keep going to help guarantee successful IoT data transfer.


The IoT 5-Band’s compact form factor is ideal for custom designed IoT communication systems built within tightly constrained spaces. FCC certified, the IoT 5-Band allows OEMs to source a compact, powerful, and highly compatible cell signal amplifier that comes ready to deploy. In locations where cellular connectivity is adversely affected by distance to cell towers, terrain obstructions, or building materials (like concrete and steel), the IoT 5-Band is a proven go-to solution.


The IoT 5-band is offered in three different kit options:


The basic kit; ideal for ATMs, vending machines, or movierental kiosks with access to AC power outlets.


The hardwire kit with DC power supplied by a vehicle to amplify cell signal for an LTE-modem hotspot.


The security kit with MMCX cables to interface with cellularbased home or business security systems.


5G Ready – WilsonPro cellular amplifiers will work for the next decade and beyond.


Custom Kit Options


Build your own amplifier kit with two custom options:



SKU 460219 – Hardwire Kit includes: Mini-Magnet antenna, 6ft. RG174 Cable and 12V DC Hardwired Power Supply


SKU 461119 – Security Kit includes: Omni Antenna, 12ft. RG-316 w/MMCX, 12ft. Adapter w/MMCX, 10ft. RG-58 w/SMA, 30ft. RG-58 w/SMA, and 5V / 4A A/C Power Supply

Warning Symbol

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

How it Works

Pro IoT 5-Band
Pro Signal 4G How it Works
1

The powerful antenna receives cellular signal and delivers it to the booster. ​

2

The booster amplifies the signal and serves as a relay between the cellular modem and the cell tower.

3

The cellular modem performs more efficiently as it feeds data to the booster and stays connected to the network.

Case Study

Why the Future of IoT Depends on Strong Cell Signal

Learn More

Key Features

  • 25 dBm maximum uplink power, 15 dB max system gain

  • Designed to link with a data modem as a direct-connect amplifier

  • Improves overall cellular connectivity in weak signal environments

  • Configurable to almost any Internet of Things (IoT) installation

  • Bi-directional amplification boosts signals to and from cell towers

  • Passive RF bypass failover keeps modem going if power is lost

  • Auto-power control to help ensure maximum signal output

  • FCC-approved and compatible with all US carrier networks

  • Choice of Basic, Hardwire, or Security Kit options

Ideal For

IOT/M2M Applications

IOT/M2M
Applications

Specs

Model460119
FrequencyBand 5 850 MHzBand 12 700 MHzBand 4 1700/2100 MHzBand 13 700 MHzBand 25/2 1900 MHz
Max Gain15 dB
Max Uplink Power24 dBm
Max Downlink Power-3 dBm
Impedance50 Ohm
Power110/240 V AC, 50 -60 Hz, 5 V DC - 5A
ConnectorsSMA Female
Dimensions1.25 x 3.5 x 6.25 in
Weight1.085
