Splitters and Taps

Sometimes, a building requires multiple inside antennas to adequately distribute a boosted signal. Splitters divide the signal uniformly between two, three, or four inside antennas (with -3dB to -6dB loss).


Similarly, taps allow the user to set up two inside antennas where one receives a stronger cellular signal than the other, such as if one antenna is farther from the booster. Typically, 6dB tap and a 10dB taps are available.

Product

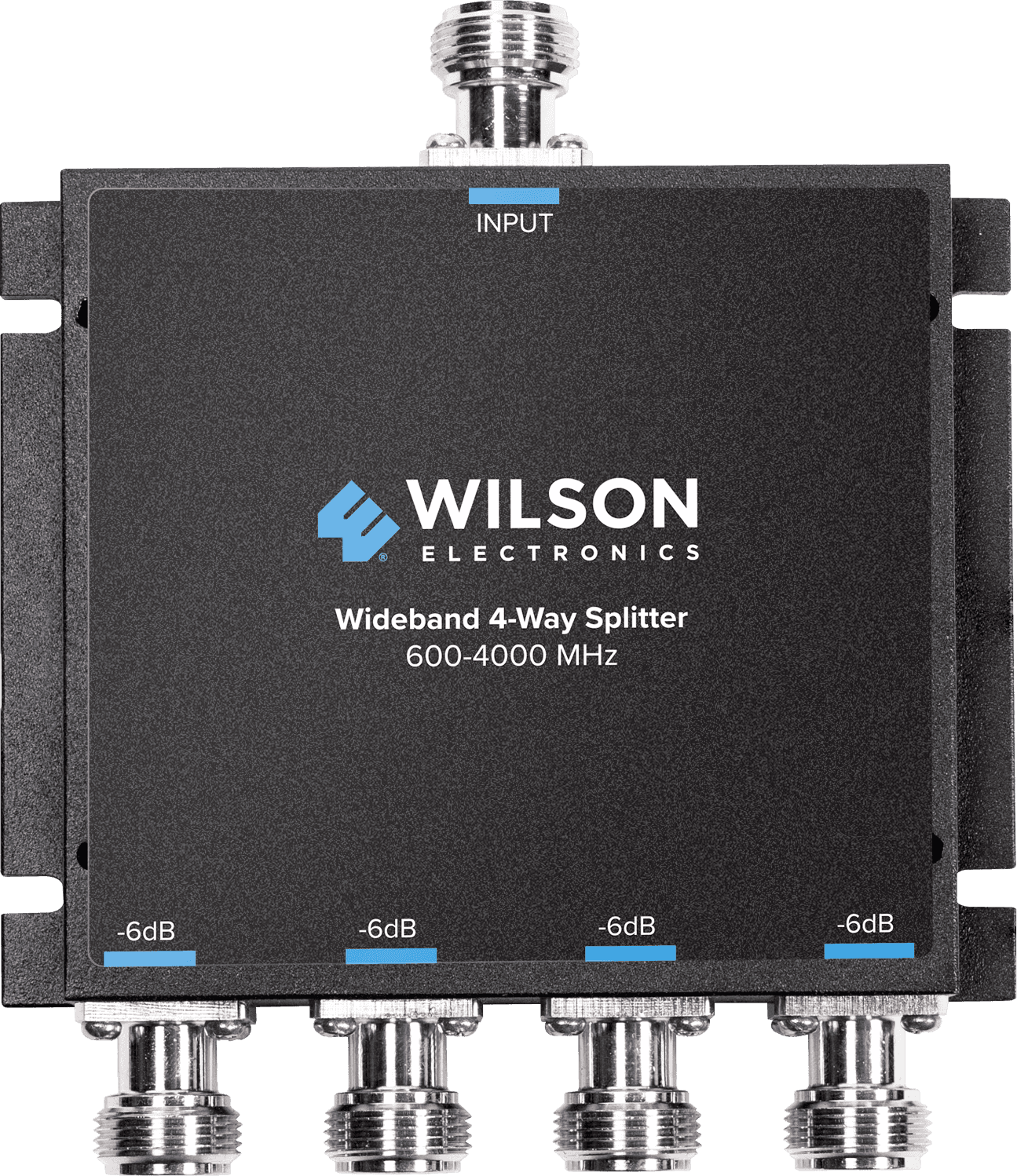

Splitter -6 dB 4 Way (50 Ohm)

SKU: 859981

4 Way Splitter, 50 Ohm with N-Female Connectors. -6 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss.

Product

Splitter -6 dB 4 Way (F-Female)

SKU: 850036

4 Way Splitter, 75 Ohm with F Female Connectors. -6 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.

Product

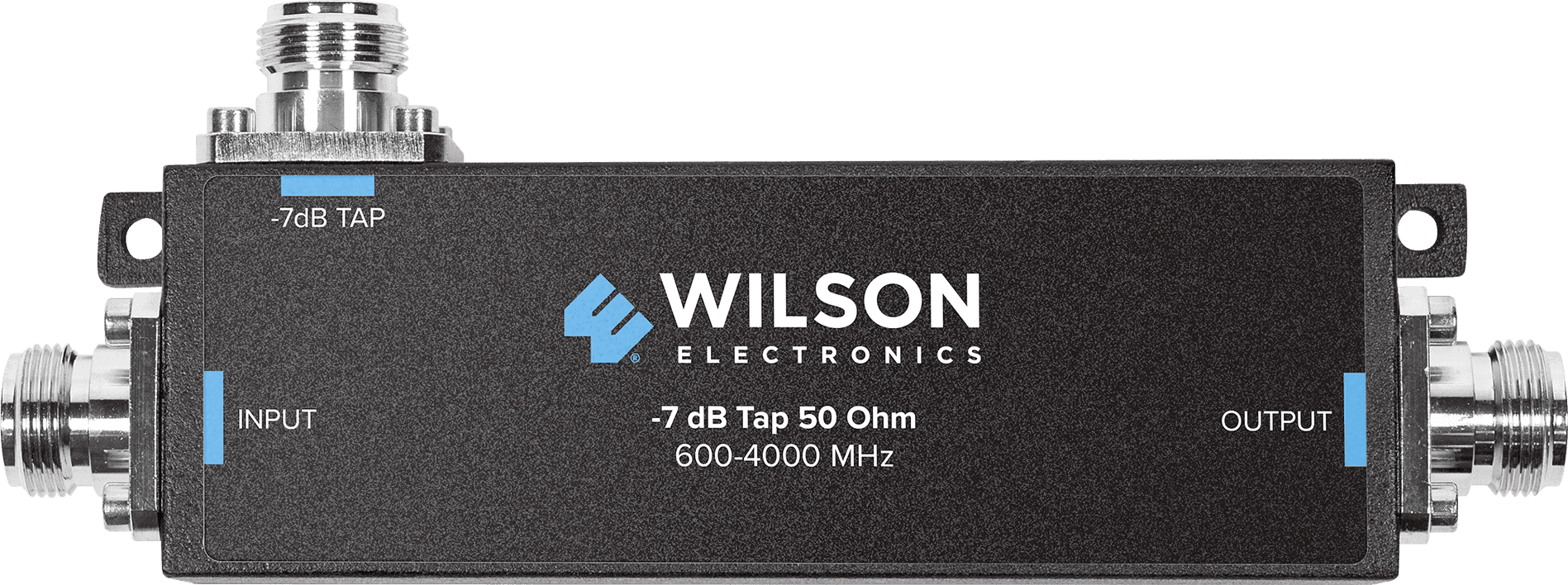

Tap -7 dB (N-Female)

SKU: 859114

50 Ohm with N-Female Connectors. -7dB, 700-2700 MHz.

Product

Splitter -6 dB 4 Way (75 Ohm)

SKU: 859106

4 Way Splitter, 75 Ohm with F Female Connectors. -6 dB, 700-2500 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.

Product

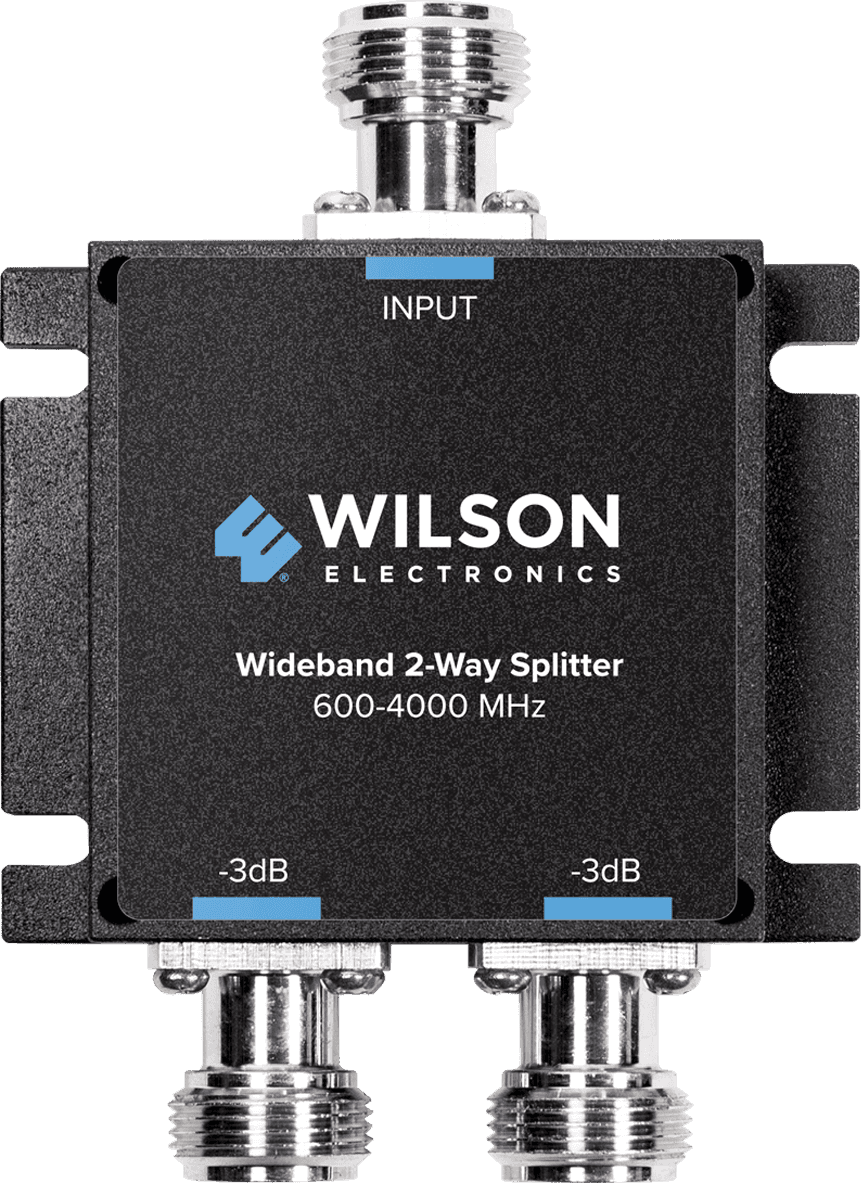

Splitter -3 dB 2 Way (50 Ohm)

SKU: 859957

2 Way Splitter, 50 Ohm with N-Female Connectors. -3 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.

Product

Splitter -4.8 dB 3 Way (75 Ohm)

SKU: 850035

3 Way Splitter, 75 Ohm with F-Female Connectors. -4.8 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.

Product

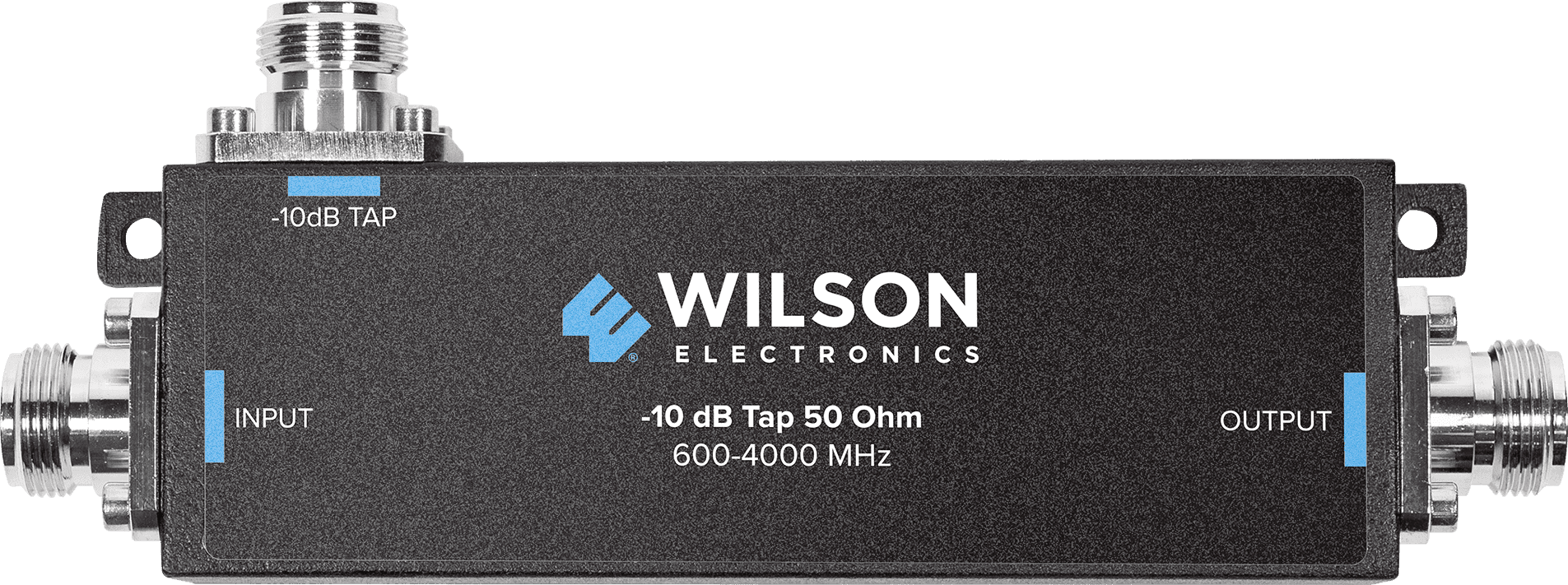

Tap -10 dB (N-Female)

SKU: 859907

50 Ohm with N-Female Connectors. -10 dB, 700-2700 MHz.

Product

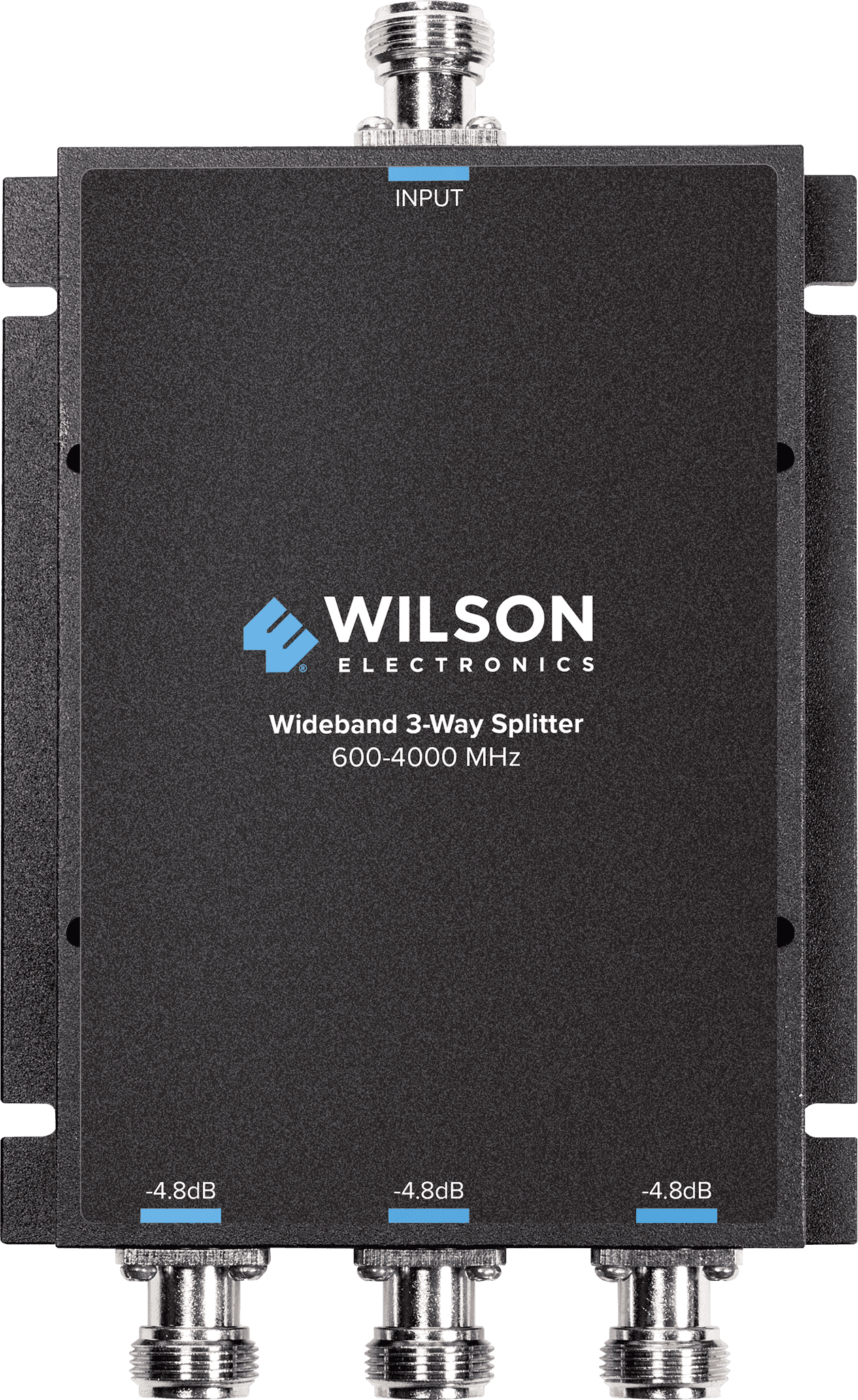

Splitter -4.8 dB 3 Way (50 Ohm)

SKU: 859980

3 Way Splitter, 50 Ohm with N Female Connectors. -4.8 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sized areas.

Product

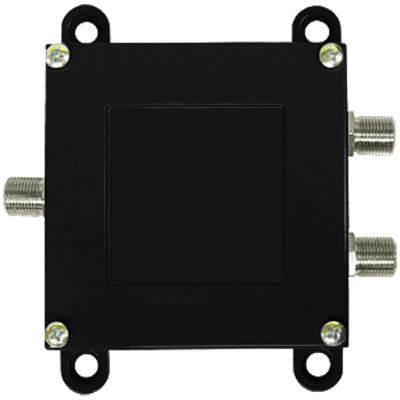

Tap -10 dB (F-Female)

SKU: 859976

75 Ohm with F Female Connectors. -10 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal for multiple inside antennas for minimum signal loss or for controlling the amount of signal to small and large areas. Features low-loss signal throughput with one -10 dB tap.

Product

Tap -7 dB (F-Connector)

SKU: 859115

-7 dB Wide Band Tap 75 Ohm with F Connectors. -7 dB, 700-2700 MHz.

Product

Splitter -3 dB 2 Way (F-Female)

SKU: 850034

2 Way Splitter, 75 Ohm with F-Female Connectors. -3 dB, 700-2700 MHz. For use in signal distribution systems to split the amplified signal with minimum signal loss.
